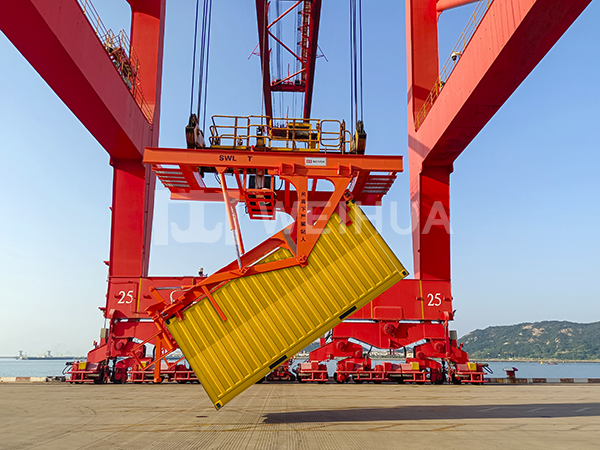

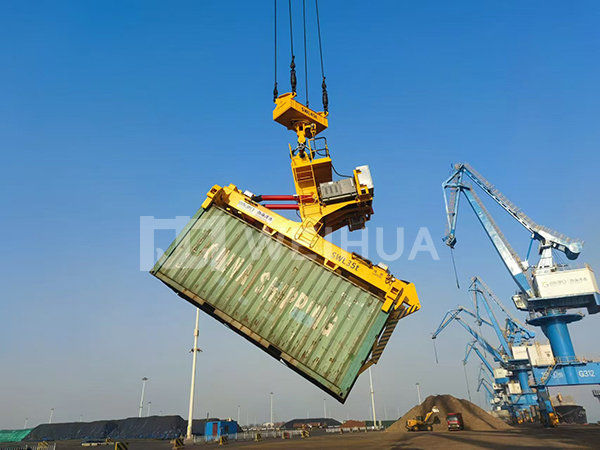

Tipping container spreader is suitable for bulk container handling. The container is controlled by hydraulic system to complete a large amount of dumping action, and the unloading efficiency can be greatly improved with vibration rammer. According to the structure, it is divided into double box and single box tipping container spreader.
1.Can be quickly switched with standard container spreader or headblock;\
2.With remote control operation, full hydraulic drive, compact structure, light weight;
3.Hydraulic components are international brands, can achieve standard interchange;
4.With indicator light, with a variety of interlock and detection functions.

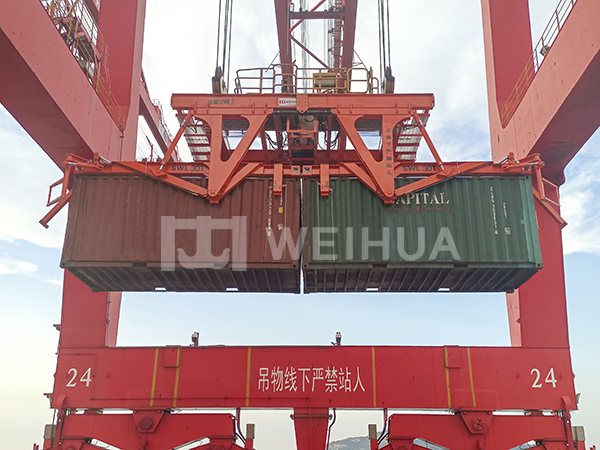

| Double box tipping container spreader | |||
| Model number：DTO02SF20-（30+30）MS | Supply voltage | According to the use of matching European standards, American standards, Chinese standards | |
| Suitable for ISO standard 20' container | Control voltage | According to the use of matching European standards, American standards, Chinese standards | |
| Rated lifting weight | 30t | System power | ≤8kW |
| Allowable load eccentricity | Length direction 0.65m, width direction 0.26m | System pressure rating | 12MPa |
| Class of protection | IP55 | ||
| Four corner lifting ears bearing weight | 4×7.5t | Ambient temperature | -20℃~+40℃ |
| Action form | Hydraulic cylinder drive | Spreader weight | 13t |
| Translation stroke | 350mm | Translation open/close time | 12/8s |
| Tipping angle | -2°~45°（selectable） | Tilt open/close time | 150/120s |
| Apply | Headblock, Container Spreader | ||
