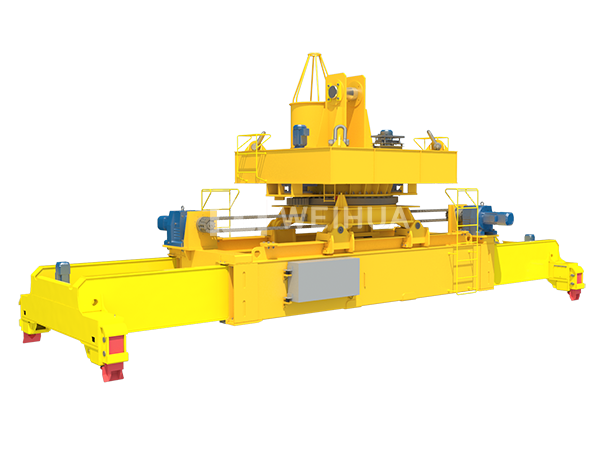

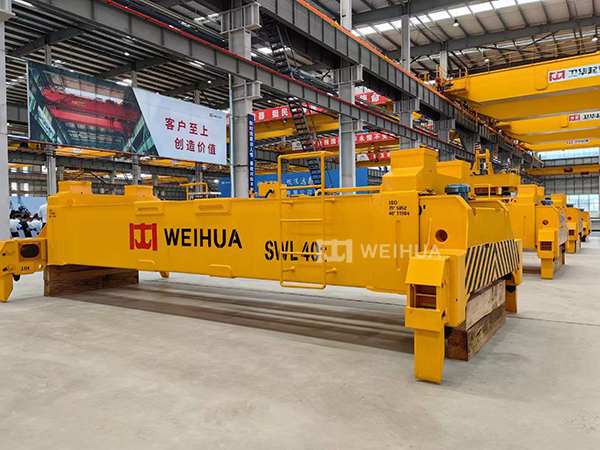

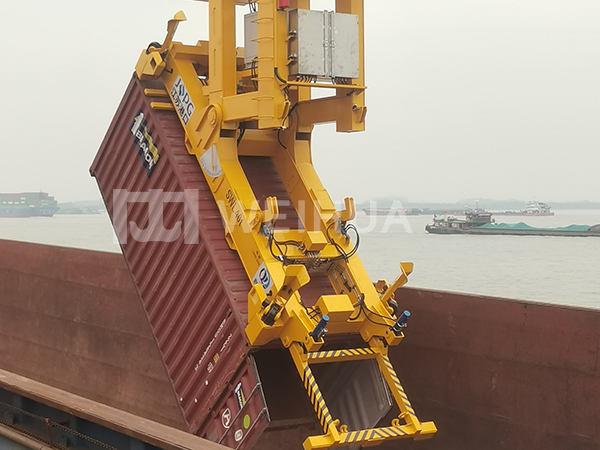

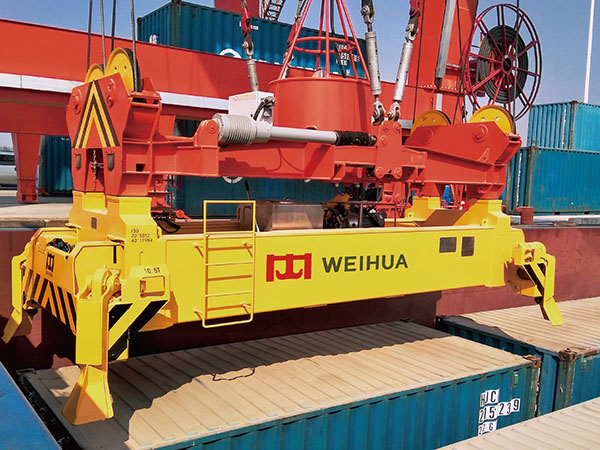

The container spreader is suitable for the transfer operation of the container in the port of the wharf, and the transfer mechanism is used to quickly complete the lifting of the container. According to the driving mode, it is divided into electric and hydraulic two categories.
1. Motor reducer, proximity switch standard international brand, motor service coefficient above 1.6;
2. Rotation and migration are double motor reducer;
3. With indicator light, with rotary pin interlock and detection function.
| Performance parameters of electric container spreader | |||
| Model number：JD01ST40-41FG | Supply voltage | According to the use of matching European standards, American standards, Chinese standards |
|
| Applicable to ISO standard 20', 40' containers | Control voltage | According to the use of matching European standards, American standards, Chinese standards | |
| Rated lifting weight | 41t | Overall power | ≤6kW |
| Allowable load eccentricity | Length direction 1.25m, width direction 0.26m | Maximum power consumption | 4kW |
| Class of protection | IP55 | ||
| Four corner lifting ears bearing weight | 4×10.25t | Ambient temperature | -20℃~+40℃ |
| Telescopic form | Gear motor chain drive | Twistlock form | ISO floating twistlock, gear motor drive |
| Stretch（20'~40'） | ~22s | Spin lock（90°） | ＜1s |
| Guide device | Fixed guide plate (removable) | Spreader weight | 7.5t |
