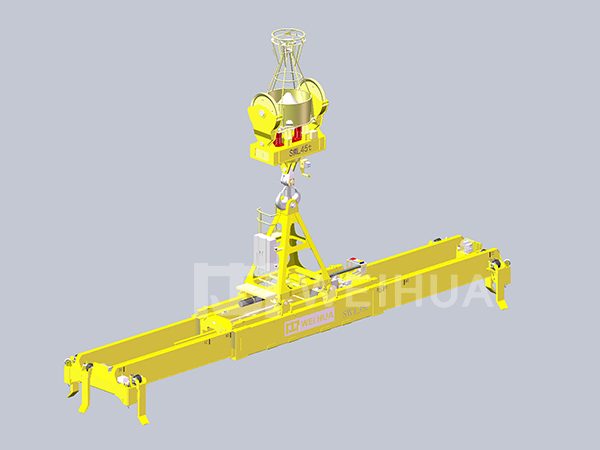

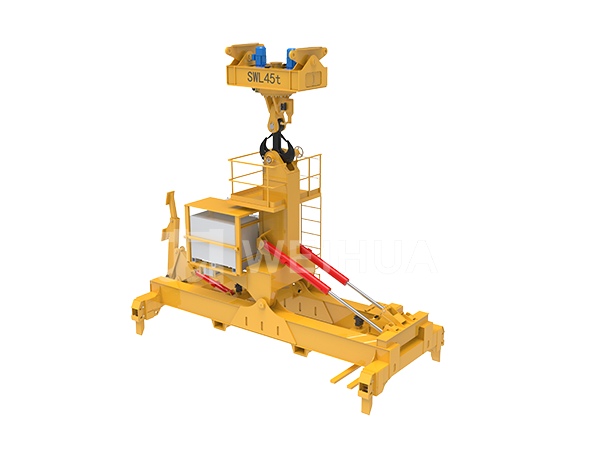

The split type rotary translation container spreader is suitable for loading and unloading of containers under the door crane. The upper rotary hook is driven by a decelerating motor to realize 360° rotation. The lower spinner is controlled by hydraulic system to realize the functions of container hoisting and center of gravity leveling. According to the spreader expansion position can be divided into 40' spreader and 45' spreader.
1. 360° rotation to adjust the direction of operation;
2. The use of 6 guide mechanism, easy to grab the container;
3. The lifting center of gravity leveling distance can reach ±1200mm;
4. With indicator light, with rotary pin interlock and detection function.
| Performance parameters of split type rotary translation container spreader | |||
| Model number: JD02STRM45-35MG | Supply voltage | According to the use of matching European standards, American standards, Chinese standards | |
| Applicable to ISO standard 20', 40', 45' containers | Control voltage | According to the use of matching European standards, American standards, Chinese standards | |
| Rated lifting weight | 41t | System power | ≤12kW |
| Allowable load eccentricity | Length direction 1.25m, width direction 0.26m | System operating pressure | 100bar |
| Class of protection | IP55 | ||
| Four corner lifting ears bearing weight | 4×10.25t | Ambient temperature | -20℃~+40℃ |
| Telescopic form | Hydraulic motor chain drive | Twistlock form | ISO floating twistlock, hydraulic cylinder drive |
| Stretch（20'~40'） | ~30s | Spin lock（90°） | ＜1s |
| Guide device | Hydraulic motor drive | Guide moment | 2400/4000N.m |
| Guide plate（180°） | 5~7s | Spreader weight | 13.5t |
